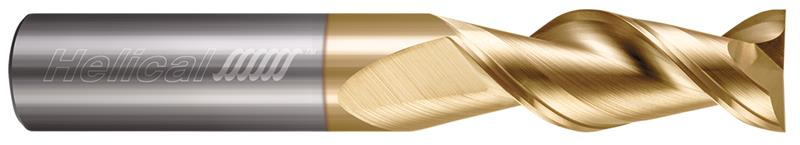

0.2500 in. (1/4) Cutter Diameter x 0.2500 in. (1/4) Shank Diameter x 0.5000 in. (1/2) Length of Cut x 2.5000 in. (2-1/2) Overall Length Carbide 2 Flute Zplus Coated 45 Deg. Helix Square End Mill
- Item Code: 00157
- Brand: Helical
- Unit Size: 1
Description
For Aluminum ; H45AL-SR-20250
Features
Back To Top- Designed for outstanding performance and accelerated metal removal rates in aluminum and non-ferrous materials
- Designed with a high helix for improved part finish and shearing action
- High helix for increased part finish and shearing action
- Cylindrically ground to maintain edge strength
- Center cutting
- h6 shank tolerance for high precision tool holders
- Zplus coating offers higher hardness and added lubricity for maximum performance
- Solid carbide end mills
- CNC ground in the USA
Tech Specs
Back To Top| Coolant Through | No |
|---|---|
| Decimal Diameter | 0.2500" |
| Center Cutting | Yes |
| Chip Breaker | No |
| Fractional Diameter | 1/4" |
| Shank Diameter | 0.2500" (1/4) |
| Coating/Finish | Zplus |
| Web Thickness | 0.0060" |
| LOC Multiple | (2x) |
| Number of Flutes | 2 |
| Length of Cut | 0.5000" (1/2) |
| Shank Length | 2.0000" (2) |
| Overall Length | 2.5000" (2-1/2) |
| Tool Description | H45AL-SR-20250 |
| Brand | Helical |
| Material | Solid Carbide |
