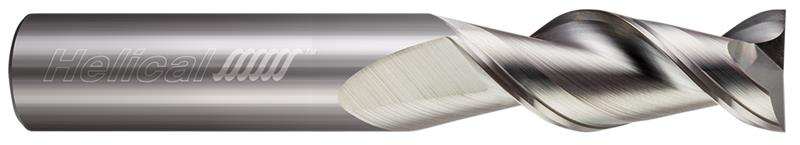

0.3125 in. (5/16) Cutter Diameter x 0.3125 in. (5/16) Shank Diameter x 1.0000 in. (1) Length of Cut x 3.0000 in. (3) Overall Length Carbide 2 Flute Uncoated 45 Deg. Helix Square End Mill
- Item Code: 00270
- Brand: Helical
- Unit Size: 1
Description
For Aluminum ; H45AL-M-20312
Features
Back To Top- Designed for outstanding performance and accelerated metal removal rates in aluminum and non-ferrous materials
- Designed with a high helix for improved part finish and shearing action
- High helix for increased part finish and shearing action
- Cylindrically ground to maintain edge strength
- Center cutting
- h6 shank tolerance for high precision tool holders
- Zplus coating offers higher hardness and added lubricity for maximum performance
- Solid carbide end mills
- CNC ground in the USA
Tech Specs
Back To Top| Tool Description | H45AL-M-20312 |
|---|---|
| Fractional Diameter | 5/16" |
| Number of Flutes | 2 |
| Length of Cut | 1.0000" (1) |
| Decimal Diameter | 0.3125" |
| LOC Multiple | (3x) |
| Web Thickness | 0.0060" |
| Coating/Finish | None |
| Shank Length | 2.0000" (2) |
| Chip Breaker | No |
| Coolant Through | No |
| Overall Length | 3.0000" (3) |
| Shank Diameter | 0.3125" (5/16) |
| Brand | Helical |
| Center Cutting | Yes |
| Material | Solid Carbide |
