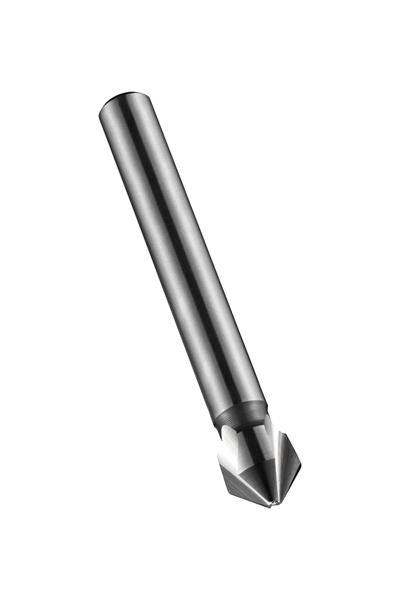

3/8 (.3750) HSS Straight Shank 3 Flute 90? Point Angle Type C Countersink
- Item Code: 0108505
- Brand: Dormer
- Unit Size: 1
Description
Countersink with 3-flutes, 90? chamfering angle, maximum diameter 10.00mm with an overall length of 50mm and a head length of 7.6mm and 6mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 2.50mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, copper or copper alloys
Features
Back To Top- 90� Countersink with straight shank for multiple materials
- Bright finish improves chip flow in soft ferrous or non-ferrous materials
Tech Specs
Back To Top| Fractional Diameter | 3/8" |
|---|---|
| Material | High Speed Steel |
| Shank Style | Cylindrical shank |
| Point Angle | 90 Deg. |
| Brand | Dormer |
| Coating/Finish | Bright |
| Cutting Direction | Right |
| Number of Flutes | 3 |
| Overall Length Inches | 1.9685" |
| Overall Length Metric | 50 mm |
