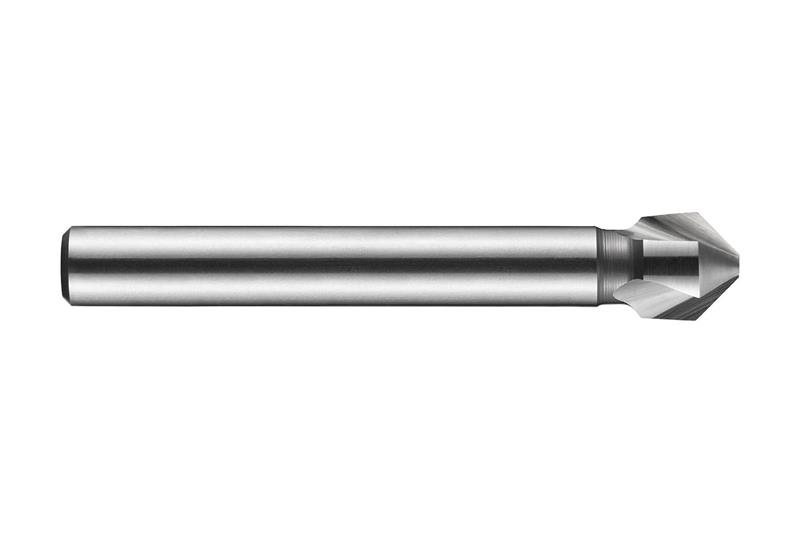

1 Inch (1.000) HSS Straight Shank 3 Flute 90? Point Angle Type C Countersink

  • Item Code: 0108604
  • Brand: Dormer
  • Unit Size: 1

Description

Countersink with 3-flutes, 90? chamfering angle, maximum diameter 25.00mm with an overall length of 67mm and a head length of 15.5mm and 10mm straight shank, according to DIN 335 C standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 3.80mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, copper or copper alloys

Features Tech Specs

Features

Back To Top
    • 90� Countersink with straight shank for multiple materials
    • Bright finish improves chip flow in soft ferrous or non-ferrous materials

Tech Specs

Back To Top
Coating/Finish Bright
Brand Dormer
Overall Length Metric 67 mm
Fractional Diameter 1"
Material High Speed Steel
Shank Style Cylindrical shank
Cutting Direction Right
Number of Flutes 3
Overall Length Inches 2.6378"
Point Angle 90 Deg.
