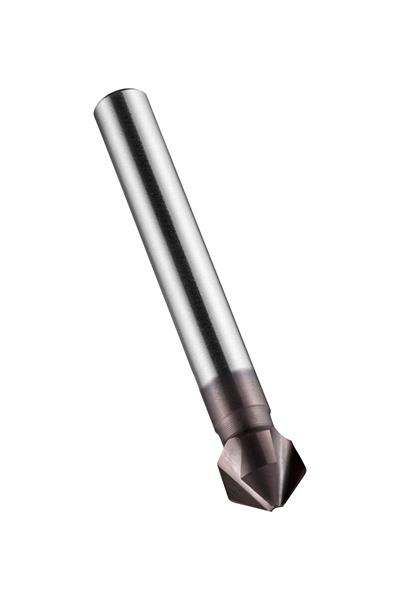

16.50 mm HSS Bright Finish 82 Deg. 3 Flute Countersink
- Item Code: 0149386
- Brand: Dormer
- Unit Size: 1
Description
Countersink with 3-flutes, 82? chamfering angle, maximum diameter 16.50mm with an overall length of 60mm and a head length of 10.5mm and 10mm straight shank, according to DIN 335 C standard to produce a conical seat for US standard countersunk-head screws with a minium hole diameter of 3.20mm, HSS with standard bright finish for machining free machining, plain carbon and alloy steel, copper or copper alloys
Features
Back To Top- 82� countersink for multiple materials
- Bright finish improves chip flow in soft ferrous or non-ferrous materials
Tech Specs
Back To Top| Coating/Finish | Bright |
|---|---|
| Overall Length Inches | 2.3622" |
| Cutting Direction | Right |
| Metric Diameter | 16.50 mm |
| Number of Flutes | 3 |
| Point Angle | 82 Deg. |
| Brand | Dormer |
| Overall Length Metric | 60 mm |
| Material | High Speed Steel |
| Shank Style | Cylindrical shank |
