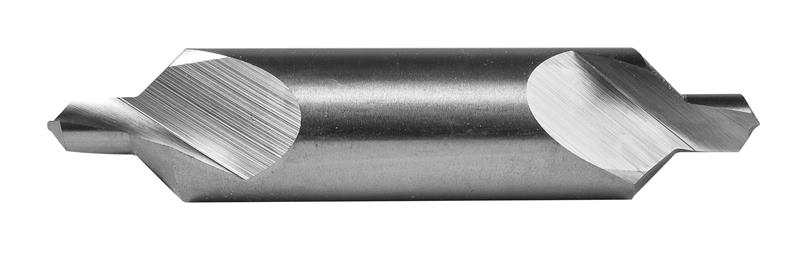

#3 HSS Bright Finish 82 Deg. Included Angle Combination Drill and Countersink
- Item Code: 0239230
- Brand: Dormer
- Unit Size: 1
Description
Centre drill (combined drill and countersink) with 82? straight conical form, double ended and cylindrical body, size 3 with 7/64" drill diameter, a body diameter of 1/4" and an overall length of 2", according to ANSI standard to produce form A centre holes or starting pilot and conical seat for US standard countersunk-head screws, HSS and bright finish for machining free machining, plain carbon and alloy steel and grey cast-iron
Features
Back To Top- 82 deg. Counter sink angle
- Bright finish improves chip flow in soft or non-ferrous materials
Tech Specs
Back To Top| Material | High Speed Steel |
|---|---|
| Overall Length Metric | 50.80 mm |
| Decimal Diameter | 0.1094" |
| Shank Style | Cylindrical shank |
| Overall Length Fractional | 2" |
| Point Angle | 120 Deg. |
| Cutting Direction | Right |
| Metric Diameter | 2.78 mm |
| Brand | Dormer |
| Overall Length Decimal | 2.0000" |
| Coating/Finish | Bright |
