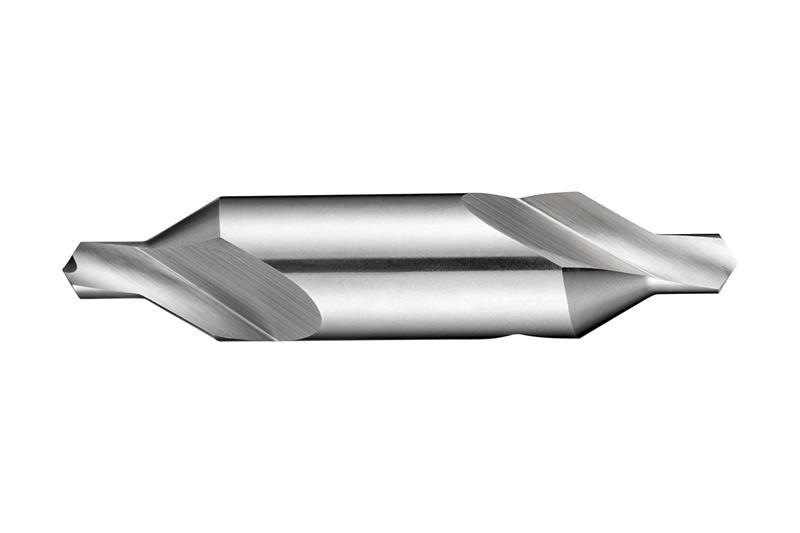

#1 HSS 60 Deg. Included Angle Series 76HA General Purpose Combined Drill and Countersink (Center Drill)
- Item Code: 0241868
- Brand: Precision Twist Drill
- Unit Size: 1
Description
76HA center drill bits conform to the American National Standards Institute (ANSI) and have a 118 degree pilot and 60 degree cone recommended for creating center holes in shafts for secure holding. They have a bright finish which prevents workpiece material from sticking to the cutting surfaces of the tool so you get a clean and accurate hole, whilst the tools are manufactured from premium High Speed Steel and can be used to drill many materials including steels, aluminum and stainless steel. 76HA drills are double ended which makes them very economical and increases productivity for each tool. They can also be used in both CNC and conventional machines so are also very versatile.
Features
Back To Top- 60 deg. Countersink
- Bright Finish improves chip flow in soft or non-ferrous materials
Tech Specs
Back To Top| Decimal Equivalent | 0.2280 |
|---|---|
| Drill Point Diameter | 3/64" |
| Drill Point Length | 3/4" |
| Body Diameter | 1/8" |
| Brand | Precision Twist Drill |
| End Type | Double |
| Fractional Diameter | 3/64" |
| Type | Combination Drill and Countersink |
| Decimal Diameter | 0.0469" |
| Shank Style | Cylindrical shank |
| Cutting Edge Style | Plain |
| Material | High Speed Steel |
| Overall Length Decimal | 1.2500" |
| Series | 76HA |
| Overall Length Fractional | 1-1/4" |
| Overall Length Metric | 31.75 mm |
| Wire Diameter | #1 |
| Coating/Finish | Bright |
| Included Angle | 60� |
| Cutting Direction | Right |
