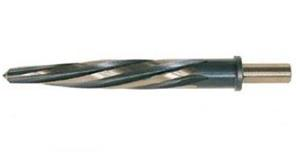

11/16 in. HSS Oxide/Gold Finish LH Helical Flute Straight Shank Car Reamer

  • Item Code: 0252369
  • Brand: Dormer
  • Unit Size: 1

Description

Car reamer with left hand slow spiral flutes and a reduced Tri-flats shank, nominal diameter 0.6875" (11/16") with an overall length of 6.3/8", a flute length of 4.1/4" and 3.9/16" starting taper, according to ANSI standard for enlarging holes or correcting misalignments, HSS with steam tempered-bronze finish for machining free machining and plain carbon steel, copper or copper alloys

Features Tech Specs

Features

Back To Top
    • Left hand helical flute, right hand cut
    • 1/2" reduced shank
    • Combination bronze and steam oxide in flutes reduces wear and chip welding in harder ferrous materials
    • Used to align or enlarge holes

Tech Specs

Back To Top
Decimal Diameter 0.6875"
Material HSS
Overall Length Fractional 6-3/8"
Shank Style Cylindrical shank
Brand Dormer
Number of Flutes 5
Coating/Finish ST/Bronze
Cutting Direction Right
Fractional Diameter 11/16"
Metric Diameter 17.46 mm
Overall Length Inches 6.375"
Overall Length Metric 161.93 mm
