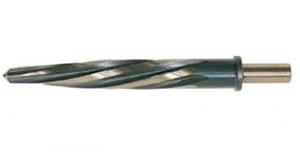

13/16 in. HSS Oxide/Gold Finish LH Helical Flute Straight Shank Car Reamer

  • Item Code: 0252383
  • Brand: Dormer
  • Unit Size: 1

Description

Car reamer with left hand slow spiral flutes and a reduced Tri-flats shank, nominal diameter 0.8125" (13/16") with an overall length of 6.7/8", a flute length of 4.1/2" and 3.7/8" starting taper, according to ANSI standard for enlarging holes or correcting misalignments, HSS with steam tempered-bronze finish for machining free machining and plain carbon steel, copper or copper alloys

Features Tech Specs

Features

Back To Top
    • Left hand helical flute, right hand cut
    • 1/2" reduced shank
    • Combination bronze and steam oxide in flutes reduces wear and chip welding in harder ferrous materials
    • Used to align or enlarge holes

Tech Specs

Back To Top
Overall Length Fractional 6-7/8"
Overall Length Inches 6.875"
Overall Length Metric 174.63 mm
Fractional Diameter 13/16"
Number of Flutes 5
Material HSS
Metric Diameter 20.64 mm
Shank Style Cylindrical shank
Cutting Direction Right
Coating/Finish ST/Bronze
Decimal Diameter 0.8125"
Brand Dormer
