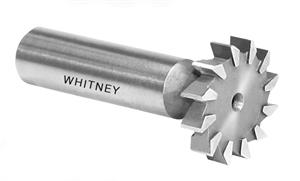

1 in. x 5/16 in. Uncoated HSS Deep Slotting Cutter With Side Teeth - 5 deg. Rake For Ferrous Material
- Item Code: 10652-WHITNEY
- Brand: Whitney Tool
- Unit Size: 1
Description
Whitney Deep Slotting Cutters With Side Cutting Teeth - High Speed Steel
Straight Tooth
Made in USA
Features
Back To Top- Hold Slot Width to Closer Tolerances
- Improved Finish On Sides
Tech Specs
Back To Top| Neck Diameter | 0.40625 |
|---|---|
| UPC | 648672106523 |
| Brand | Whitney Tool |
| Shank Diameter | 1/2" |
| Overall Length (Inch) | 2-5/16" |
| Coating/Finish | None |
| Width Tolerance | +0", -0.0005" |
| OD Tolerance | +0.015", +0.020" |
| Style | 5 deg. Rake for Ferrous Material |
| Cut Width | 5/16" |
| Fractional Cutting Diameter | 1" |
| Metric Cutting Diameter | 25.40 mm |
| Material | High Speed Steel |
| Shank Type | Straight |
| Number of Teeth | 10 |
| Shank Length | 2 |
| Shank Diameter Tolerance | +0", -0.0005" |
| Tooth Configuration | Straight |
