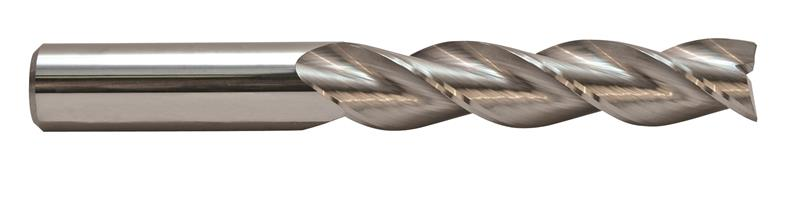

1/2 Inch Diam, 1-1/2 Inch Length of Cut, 3-Flute, Solid Carbide Center Cutting, Aluminum Finisher End Mill Uncoated
- Item Code: 13850004
- Brand: MA Ford
- Unit Size: 1
Description
Tuff Cut® X-AL - Series 138
138/138R Series Designed for Extreme High Speed Machining of Aluminum and non-ferrous metals.
Tech Specs
Back To Top| Material | Solid Carbide |
|---|---|
| Series | Tuff Cut® X-AL |
| Brand | MA Ford |
| Decimal Diameter | 0.5000" |
| Overall Length | 4 Inch |
| Coating/Finish | TiAlN |
| Helix Angle | 36° |
| Length of Cut | 1-1/2 Inch |
| Number of Flutes | 3 |
| Shank Diameter | 1/2 Inch |
| Fractional Diameter | 1/2" |
| Type | End Mill |
