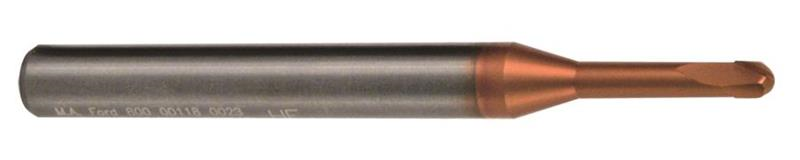

3/32 Tuff Cut® DM, 2-Flute, ALtima 52 Coated, Center Cutting, Ball Nose Endmill - 5/16 Neck Length
- Item Code: 15609371A
- Brand: MA Ford
- Unit Size: 1
Description
Tuff Cut® DM - Series 156
Center Cutting
ALtima® 52--Aluminum Titanium Nitride (AlTiN).
Series 156 is designed for high-productivity milling of hard and difficult to cut materials Rc 45-60. Coated with ALtima® 52 for materials Rc 52 and above.
Tech Specs
Back To Top| Diameter Maximum | 0.0898" |
|---|---|
| Neck Length | 5/16 Inch |
| Number of Flutes | 2 |
| Overall Length | 2-1/2 Inch |
| Shank Diameter | 1/4 Inch |
| Fractional Diameter | 3/32" |
| Material | Solid Carbide |
| Brand | MA Ford |
| Length of Cut | 3/32 Inch |
| Series | Tuff Cut® DM |
| Coating/Finish | AlTiN |
| Helix Angle | 20° |
| Type | End Mill |
| Decimal Diameter | 0.0937" |
