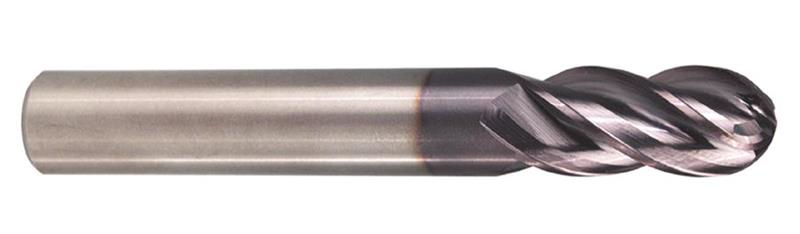

3/16 Inch Diameter, 3/8 Inch LOC, 2 Inch OAL Carbide ALtima® Coated TuffCut® XR 4-Flute Variable Helix Ball Nose End Mill

  • Item Code: 17918700A
  • Brand: MA Ford
  • Unit Size: 1

Description

Tuff Cut® XR - Series 179

Uniquely designed heli-pitch grinding geometry promotes continual, vibration free cutting regardless of depth of cut or width of cut.

ALtima™ is a stronger designed AlTiN coating. It is commonly used on hardened steels, stainless steel, titanium alloy and other difficult-to-machine materials. ALtima™ is a proprietary coating exclusive to M.A. Ford Mfg. Co., Inc.

Features Tech Specs

Features

Back To Top
    • Variable helix
    • ALtima coated
    • Straight shank
    • Designed for extreme productivity
    • Unique flute geometry reduces harmonics at increased feeds and speed

Tech Specs

Back To Top
Decimal Diameter 0.1875"
Length of Cut 3/8 Inch
Helix Angle 35°/38°
Material Solid Carbide
Overall Length 2 Inch
Type End Mill
Shank Diameter 3/16 Inch
Brand MA Ford
Fractional Diameter 3/16"
Number of Flutes 4
Series Tuff Cut® XR
Coating/Finish AlTiN
