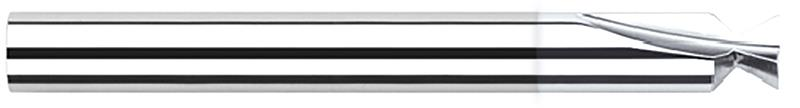

0.0830 in. (2.1 mm) Cutter Diameter x 0.0150 in. (1/64) Radius x 48 Deg. Included 2 Flute TiB2 Coated Carbide Dovetail Cutter Without Drop Hole Allowance

  • Item Code: 23914-C8
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed to the standards suggested by the O-Ring division of Parker Hannifin Corporations (tools meet both specs: ORD 5700/USA, ORD 5700)
    • Designed for milling half dovetails or full dovetails with no drop hole allowance
    • Mills bottom radius only
    • 24 degree per side, 48 degree included
    • 2 straight flutes
    • Center cutting
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Included Angle 48
Material Solid Carbide
Radius Decimal 0.0150"
Radius Fractional 1/64"
Brand Harvey Tool
Neck Diameter 0.0240" (.6 mm)
Metric Cutting Diameter 2.10 mm
Shank Diameter 0.1250" (1/8)
Length of Cut 0.0850"
Number of Flutes 2
Angle per Side 24
O Ring X Section 0.1030"
Decimal Cutting Diameter 0.0830"
Overall Length 1.5000" (1-1/2)
Coating/Finish TiB2
