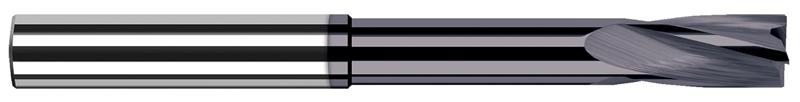

0.2969 in. (19/64) Cutter Diameter x 0.8750 in. (7/8) Flute Length x 2.3750 in. (2-3/8) Reach 4 Flute AlTiN Coated Carbide Flat Bottom Counterbore

  • Item Code: 25519-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Undersized neck to avoid heeling
    • Flat Bottom (No Dish) design allows spot facing or counterboring on irregular surfaces
    • Ideal for castings, rounded parts, concaved or drafted surfaces
    • Can be used for flat bottom reaming or straightening misaligned holes
    • Center cutting
    • Ground with full cylidrical margin (not side cutting)
    • 15 degree helix
    • 4 Flutes
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Overall Length 4.0000" (4)
Decimal Cutting Diameter 0.2969"
Flute Length 0.8750" (7/8)
Neck Diameter 0.2520"
Number of Flutes 4
Fractional Cutting Diameter 19/64"
Shank Diameter 0.3125" (5/16)
Overall Reach 2.3750" (2-3/8)
Brand Harvey Tool
Coating/Finish AlTiN
Material Solid Carbide
