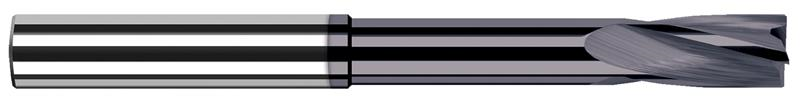

0.4375 in. (7/16) Cutter Diameter x 1.0000 in. (1) Flute Length x 3.0000 in. (3) Reach 4 Flute AlTiN Coated Carbide Flat Bottom Counterbore

  • Item Code: 25528-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Undersized neck to avoid heeling
    • Flat Bottom (No Dish) design allows spot facing or counterboring on irregular surfaces
    • Ideal for castings, rounded parts, concaved or drafted surfaces
    • Can be used for flat bottom reaming or straightening misaligned holes
    • Center cutting
    • Ground with full cylidrical margin (not side cutting)
    • 15 degree helix
    • 4 Flutes
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Brand Harvey Tool
Flute Length 1.0000" (1)
Material Solid Carbide
Coating/Finish AlTiN
Decimal Cutting Diameter 0.4375"
Overall Reach 3.0000" (3)
Fractional Cutting Diameter 7/16"
Shank Diameter 0.4375" (7/16)
Number of Flutes 4
Overall Length 4.0000" (4)
Neck Diameter 0.3720"
