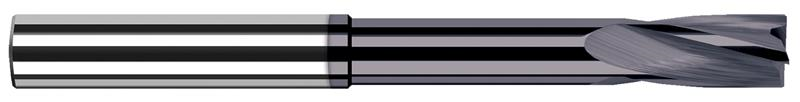

0.5000 in. (1/2) Cutter Diameter x 1.0000 in. (1) Flute Length x 3.0000 in. (3) Reach 4 Flute AlTiN Coated Carbide Flat Bottom Counterbore

  • Item Code: 25532-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Undersized neck to avoid heeling
    • Flat Bottom (No Dish) design allows spot facing or counterboring on irregular surfaces
    • Ideal for castings, rounded parts, concaved or drafted surfaces
    • Can be used for flat bottom reaming or straightening misaligned holes
    • Center cutting
    • Ground with full cylidrical margin (not side cutting)
    • 15 degree helix
    • 4 Flutes
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Flute Length 1.0000" (1)
Material Solid Carbide
Overall Reach 3.0000" (3)
Decimal Cutting Diameter 0.5000"
Neck Diameter 0.4250"
Brand Harvey Tool
Number of Flutes 4
Overall Length 4.0000" (4)
Shank Diameter 0.5000" (1/2)
Coating/Finish AlTiN
Fractional Cutting Diameter 1/2"
