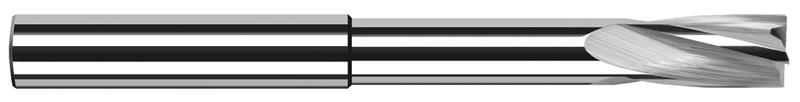

0.1181 in. (3 mm) Cutter Diameter x 0.3750 in. (3/8) Flute Length x 1.0000 in. (1) Reach 4 Flute Carbide Flat Bottom Counterbore

  • Item Code: 2553M
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Undersized neck to avoid heeling
    • Flat Bottom (No Dish) design allows spot facing or counterboring on irregular surfaces
    • Ideal for castings, rounded parts, concaved or drafted surfaces
    • Can be used for flat bottom reaming or straightening misaligned holes
    • Center cutting
    • Ground with full cylidrical margin (not side cutting)
    • 15 degree helix
    • 4 Flutes
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Coating/Finish None
Flute Length 0.3750" (3/8)
Material Solid Carbide
Decimal Cutting Diameter 0.1181"
Brand Harvey Tool
Overall Length 2.5000" (2-1/2)
Metric Cutting Diameter 3.00 mm
Number of Flutes 4
Overall Reach 1.0000" (1)
Shank Diameter 0.1250" (1/8)
Neck Diameter 0.1060" (2.7 mm)
