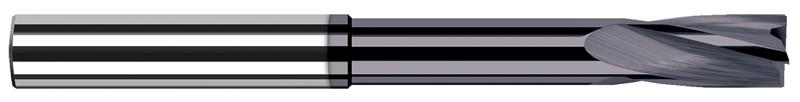

0.1575 in. (4 mm) Cutter Diameter x 0.6250 in. (5/8) Flute Length x 1.2500 in. (1-1/4) Reach 4 Flute AlTiN Coated Carbide Flat Bottom Counterbore

  • Item Code: 2554M-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Undersized neck to avoid heeling
    • Flat Bottom (No Dish) design allows spot facing or counterboring on irregular surfaces
    • Ideal for castings, rounded parts, concaved or drafted surfaces
    • Can be used for flat bottom reaming or straightening misaligned holes
    • Center cutting
    • Ground with full cylidrical margin (not side cutting)
    • 15 degree helix
    • 4 Flutes
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Coating/Finish AlTiN
Overall Reach 1.2500" (1-1/4)
Shank Diameter 0.1875" (3/16)
Metric Cutting Diameter 4.00 mm
Neck Diameter 0.1340"
Decimal Cutting Diameter 0.1575"
Material Solid Carbide
Number of Flutes 4
Brand Harvey Tool
Flute Length 0.6250" (5/8)
Overall Length 3.0000" (3)
