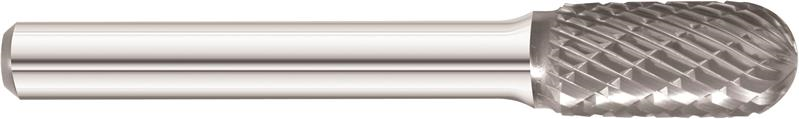

3/8 (.3750) Cylindrical Ball (SC-3) Single Cut Solid Carbide Burr (Rotary File)
- Item Code: 42197
- Brand: Fullerton
- Unit Size: 1
Description
Fullerton's solid carbide burrs (rotary files) are available in a wide range of shapes, sizes and unique flute geometries. Rotary files are often used to clean (deburr) castings.
Features
Back To Top- Solid Carbide Head
- Industry Standard forms: SA, SB, SC, SD, SE, SF, SG, SM, SL, SH, SK, SJ, SN, and SNE
- Available in several cuts to meet your needs: Single Cut, Double Cut, Chip Breaker, Diamond, Fast Mill Cut (Aluma Cut)
- Fine and Coarse Available on Quote
- .2500�� Shank Tools provided with Steel Shanks
Tech Specs
Back To Top| Coating/Finish | None |
|---|---|
| Brand | Fullerton |
| End Type | SE |
| Metric/Inch | Inch |
| Series | BURR |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Shank Diameter (mm) | 6.35 |
| Tool Number | SC-3 |
| Cut Number | 1 |
| Material | Solid Carbide |
| Shank Diameter (Inch) | 1/4 |
| Shape Identifier | SC-3 |
| Burr Shape | Cylindrical - Ball Nose |
| Flute Length (Inch) | 3/4 |
| Flute Spiral Direction | RH |
| Decimal Cutting Diameter | 0.3750" |
| Direction of Cut | RH |
| Flute Length (Decimal Inch) | 0.7500 |
| Flute Length (mm) | 19.05 |
| Overall Length (Decimal Inch) | 2.5000 |
| Overall Length (mm) | 63.50 |
| Cut Name | Single |
| Tool Set | 60001 |
| Coolant Through | No |
| Fractional Cutting Diameter | 3/8" |
| Metric Cutting Diameter | 9.53 mm |
| No. of Flutes/Teeth | 20 |
| Overall Length (Inch) | 2-1/2 |
| Weldon Flat | No |
