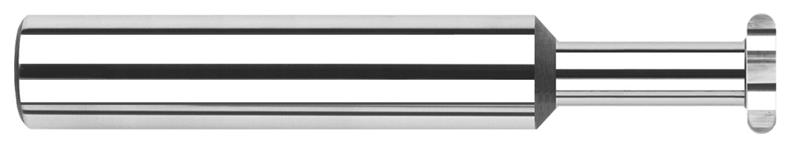

0.6250 in. (5/8) Cutter Diameter x 0.0469 in. (3/64) Radius x 1.0000 in. (1) Neck Length 6 Flute Carbide Full Radius Keyseat Cutter

  • Item Code: 43447-HARVEY
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ground form relieved (can be re-ground without losing radius)
    • 6 flutes
    • Both sides of cutter are dished for clearance
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Overall Length 3.5000" (3-1/2)
Brand Harvey Tool
Cutter Width 0.0938"
Neck Diameter 0.3000"
Shank Diameter 0.6250" (5/8)
Radial Depth of Cut 0.1520"
Type I
Number of Flutes 6
Coating/Finish None
Neck Length 1.0000" (1)
Radius Decimal 0.0469"
Radius Fractional 3/64"
Fractional Diameter 5/8"
Reach Multiple (1.5x)
Material Solid Carbide
Decimal Diameter 0.6250"
