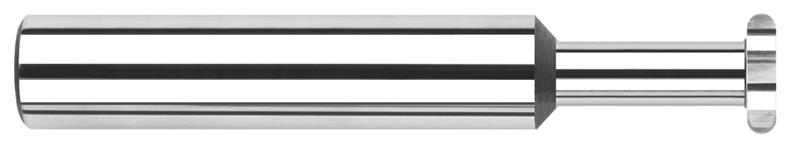

0.6250 in. (5/8) Cutter Diameter x 0.0781 in. (5/64) Radius x 1.0000 in. (1) Neck Length 6 Flute Carbide Full Radius Keyseat Cutter

  • Item Code: 43478
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ground form relieved (can be re-ground without losing radius)
    • 6 flutes
    • Both sides of cutter are dished for clearance
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Coating/Finish None
Material Solid Carbide
Overall Length 3.5000" (3-1/2)
Radial Depth of Cut 0.1520"
Neck Diameter 0.3000"
Shank Diameter 0.6250" (5/8)
Fractional Diameter 5/8"
Neck Length 1.0000" (1)
Decimal Diameter 0.6250"
Reach Multiple (1.5x)
Type I
Cutter Width 0.1562" (5/32)
Number of Flutes 6
Radius Decimal 0.0781"
Brand Harvey Tool
Radius Fractional 5/64"
