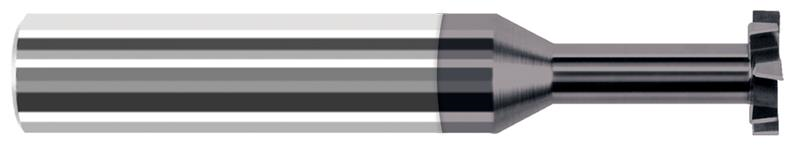

0.5000 in. (1/2) Cutter Diameter x 0.0050 in. Radius x 0.1250 in. (1/8) Width x 0.7500 in. (3/4) Neck Length 8 Flute AlTiN Coated Carbide Corner Radius Stagger Keyseat Cutter

  • Item Code: 44360-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Staggered tooth design for freer cutting action
    • Design improves shearing action, minimizes chip dragging and recutting, decreases vibration, and improves side wall finish
    • Alternating RH/LH shear flutes, RH cut
    • Relieved to allow cutting on?both sides of head
    • Tool can be offset to increase width of groove
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Radial Depth of Cut 0.1150"
Shank Diameter 0.5000" (1/2)
Type I
Neck Diameter 0.2500" (1/4)
Reach Multiple (1.5x)
Radius Decimal 0.0050"
Fractional Diameter 1/2"
Number of Flutes 8
Brand Harvey Tool
Cutter Width 0.1250" (1/8)
Overall Length 3.0000" (3)
Coating/Finish AlTiN
Material Solid Carbide
Neck Length 0.7500" (3/4)
Top Corner Radius 0.005
Decimal Diameter 0.5000"
