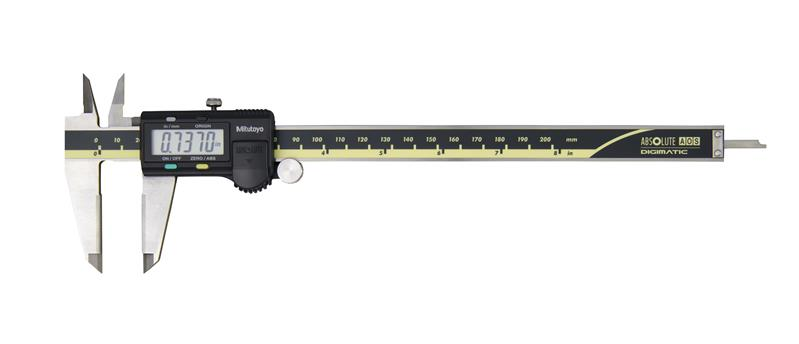

0-8 Inch(200mm), 0.0005 Inch(0.01mm), ABSOLUTE AOS Digimatic Caliper, No Output, Carbide OD Jaws

  • Item Code: 500-163-30
  • Brand: Mitutoyo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • New electromagnetic inductive (AOS) sensor
    • ZERO/ABS key allows the display to be Zero-Set at any slider position
    • Large and clear LCD readout.

Tech Specs

Back To Top
Primary Measuring Range Lower - Metric 0mm
Primary Measuring Range Upper - Metric 200mm
Range 0 - 8 In / 0 - 200mm
Secondary (Inside Diameter) Contact Point Material Carbide
Brand Mitutoyo
Mechanical or Digital Digimatic
Primary (Outside Diameter) Contact Point Material Carbide
Primary Measuring Range Lower - Inch 0 In
Resolution or Graduation .0005 In
Accuracy ±.001 In
Case Material Plastic Case
Case Part Number 05RAB350
Individual or Set Individual
Primary Measuring Range Upper - Inch 8 In
Data Output N
