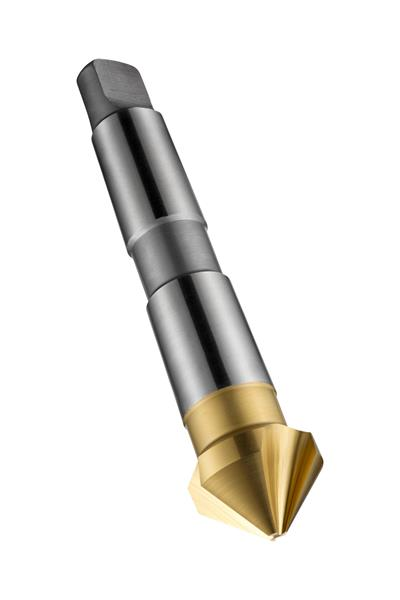

31.00 mm HSS TiN Finish RH 3 Flute 90 Deg. #2 Morse Taper Single End Countersink
- Item Code: 5973322
- Brand: Dormer
- Unit Size: 1
Description
Countersink with 3-flutes, 90? chamfering angle, maximum diameter 31.00mm with an overall length of 112mm and a head length of 20mm and MT 2 Morse-taper shank, according to DIN 335 D standard to produce a conical seat for ISO Metric countersunk-head screws with a minium hole diameter of 4.20mm, HSS with standard TiN coating for machining steel and cast steel, grey, malleable, ductile and compacted graphite cast-iron, wrought and cast aluminium and copper or copper alloys
Tech Specs
Back To Top| Coating/Finish | TiN |
|---|---|
| Cutting Direction | Right |
| Metric Diameter | 31.00 mm |
| Number of Flutes | 3 |
| Point Angle | 90 Deg. |
| Material | High Speed Steel |
| Overall Length Inches | 4.4094" |
| Overall Length Metric | 112 mm |
| Brand | Dormer |
| Shank Style | Morse Taper Shank |
