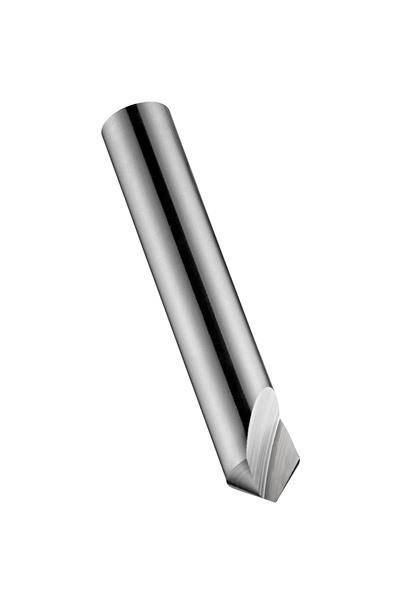

6.00 mm x 45 mm OAL HSS Bright Finish RH 90 Deg. Countersink
- Item Code: 5973328
- Brand: Dormer
- Unit Size: 1
Description
Countersink with 1-flute, 90? chamfering angle, maximum diameter 6.00mm with an overall length of 45mm and 6mm straight shank, according to DORMER standard to produce a conical seat for ISO Metric countersunk-head screws, HSS with standard bright finish for machining free machining and plain carbon steel, wrought and copper or copper alloys
Tech Specs
Back To Top| Coating/Finish | Bright |
|---|---|
| Metric Diameter | 6.00 mm |
| Material | High Speed Steel |
| Overall Length Inches | 1.7717" |
| Point Angle | 90 Deg. |
| Brand | Dormer |
| Decimal Diameter | 0.2362" |
| Number of Flutes | 1 |
| Overall Length Metric | 45 mm |
| Shank Style | Cylindrical shank |
| Cutting Direction | Right |
