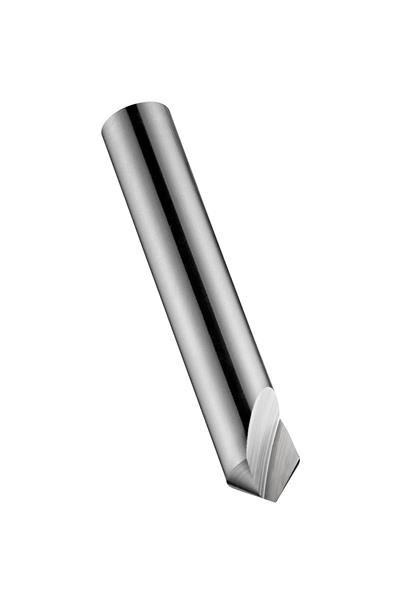

8.00 mm x 50 mm OAL HSS Bright Finish RH 90 Deg. Countersink
- Item Code: 5973330
- Brand: Dormer
- Unit Size: 1
Description
Countersink with 1-flute, 90? chamfering angle, maximum diameter 8.00mm with an overall length of 50mm and 8mm straight shank, according to DORMER standard to produce a conical seat for ISO Metric countersunk-head screws, HSS with standard bright finish for machining free machining and plain carbon steel, wrought and copper or copper alloys
Tech Specs
Back To Top| Shank Style | Cylindrical shank |
|---|---|
| Overall Length Inches | 1.9685" |
| Brand | Dormer |
| Material | High Speed Steel |
| Number of Flutes | 1 |
| Cutting Direction | Right |
| Metric Diameter | 8.00 mm |
| Point Angle | 90 Deg. |
| Coating/Finish | Bright |
| Decimal Diameter | 0.3150" |
| Overall Length Metric | 50 mm |
