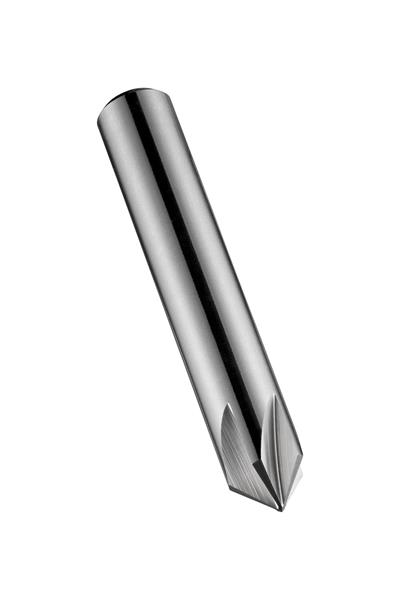

16.00 mm x 56 mm OAL HSS Bright Finish RH 90 Deg. Countersink
- Item Code: 5973408
- Brand: Dormer
- Unit Size: 1
Description
Countersink with 1-flute, 90? chamfering angle, maximum diameter 16.00mm with an overall length of 56mm and a head length of 20mm and 10mm straight shank, according to DORMER standard to produce a conical seat for ISO Metric countersunk-head screws, HSS with standard bright finish for machining free machining and plain carbon steel, wrought and copper or copper alloys
Tech Specs
Back To Top| Cutting Direction | Right |
|---|---|
| Material | High Speed Steel |
| Point Angle | 90 Deg. |
| Coating/Finish | Bright |
| Overall Length Inches | 2.2047" |
| Brand | Dormer |
| Number of Flutes | 1 |
| Overall Length Metric | 56 mm |
| Decimal Diameter | 0.6299" |
| Metric Diameter | 16.00 mm |
| Shank Style | Cylindrical shank |
