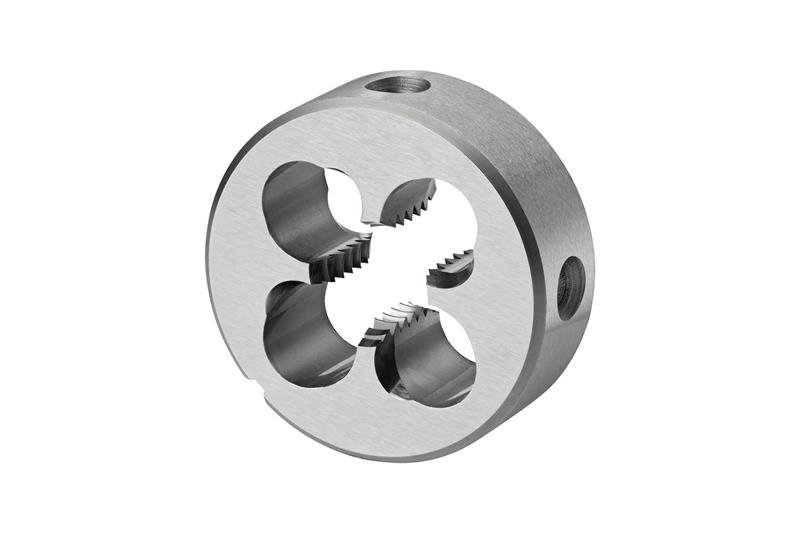

M10 x 1 Fine HSS Bright Finish RH Gun Nosed Die
- Item Code: 5978612
- Brand: Dormer
- Unit Size: 1
Description
Solid round die with a gun nose, for ISO-Metric Fine thread M10 with 1.00 mm pitch and 6g class of fit, dimensions according to ISO 2568 standard with 30mm outside diameter and 11mm thickness, HSS with lapped surface finish for threading in free machining and plain carbon steel, ferritic stainless steel and gray, malleable, ductile and compacted graphite cast-iron
Tech Specs
Back To Top| Thread Size Metric | M10 x 1.00 |
|---|---|
| Overall Length Metric | 11 mm |
| Material | High Speed Steel |
| Overall Length Inches | 0.4331" |
| Brand | Dormer |
| Coating/Finish | Bright |
| Cutting Direction | Right |
