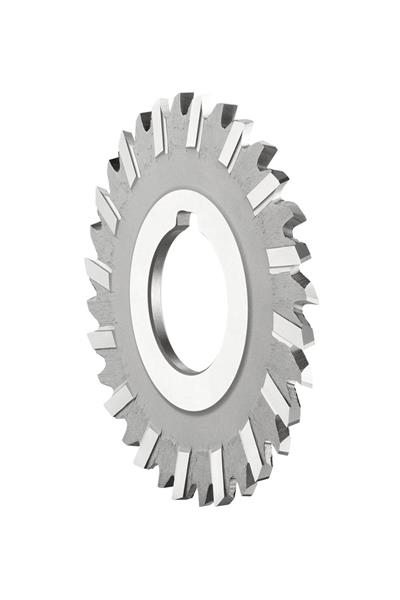

100.00 mm x 2 mm Carbide (HSS-E) Uncoated 44 Teeth Staggered Side and Face Milling Cutter

  • Item Code: 5985695
  • Brand: Dormer
  • Unit Size: 1

Description

D763 side and face bore cutter from Dormer have a fine pitch design, ideal for narrow, deep slots, where the staggered tooth geometry also helps control chips during milling. They are manufactured from High Speed cobalt which gives excellent tool strength, performance and wear resistance and have a bright finish to stop workpiece material from sticking to the cutting edges of the tool, so you get a clean and accurate result. D763 fine pitch side and face cutter are very versatile and can be used for horizontal milling slots in steels, stainless steels, aluminium and cast iron.

Tech Specs

Back To Top
Number of Teeth 44
Helix Angle 15 Deg.
Type Side and Face Milling Cutter
Decimal Cutting Diameter 3.937"
Coating/Finish Bright
Brand Dormer
Cutting Width 2 mm
Material Cobalt
Metric Cutting Diameter 100.00 mm
