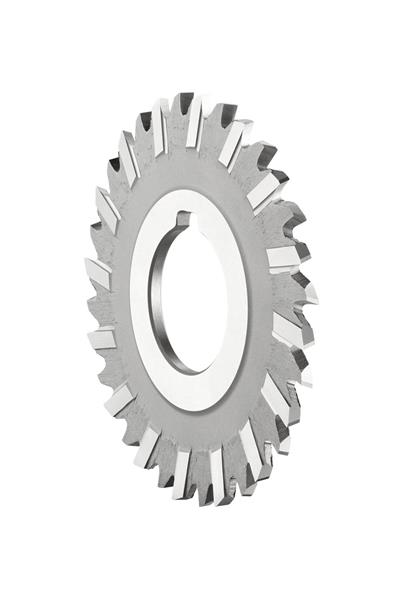

63.00 mm x 2 mm Carbide (HSS-E) Uncoated 32 Teeth Staggered Side and Face Milling Cutter

  • Item Code: 5985739
  • Brand: Dormer
  • Unit Size: 1

Description

D763 side and face bore cutter from Dormer have a fine pitch design, ideal for narrow, deep slots, where the staggered tooth geometry also helps control chips during milling. They are manufactured from High Speed cobalt which gives excellent tool strength, performance and wear resistance and have a bright finish to stop workpiece material from sticking to the cutting edges of the tool, so you get a clean and accurate result. D763 fine pitch side and face cutter are very versatile and can be used for horizontal milling slots in steels, stainless steels, aluminium and cast iron.

Tech Specs

Back To Top
Number of Teeth 32
Cutting Width 2 mm
Type Side and Face Milling Cutter
Material Cobalt
Coating/Finish Bright
Metric Cutting Diameter 63.00 mm
Brand Dormer
Decimal Cutting Diameter 2.4803"
Helix Angle 15 Deg.
