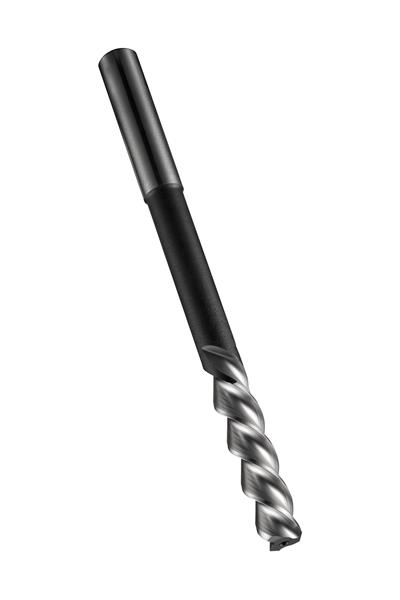

1 in. HSS Oxide/Gold Finish LH Helical Flute Straight Shank Car Reamer
- Item Code: 5986605
- Brand: Dormer
- Unit Size: 1
Description
Car reamer with left hand slow spiral flutes and a reduced Tri-flats shank, nominal diameter 1.0000" (1") with an overall length of 6.7/8", a flute length of 4.1/2" and 3.7/8" starting taper, according to ANSI standard for enlarging holes or correcting misalignments, HSS with steam tempered-bronze finish for machining free machining and plain carbon steel, copper or copper alloys
Tech Specs
Back To Top| Decimal Diameter | 1" |
|---|---|
| Metric Diameter | 25.4 mm |
| Material | HSS |
| Number of Flutes | 5 |
| Coating/Finish | ST/Bronze |
| Overall Length Metric | 174.63 mm |
| Fractional Diameter | 1" |
| Cutting Direction | Right |
| Overall Length Fractional | 6-7/8" |
| Overall Length Inches | 6.875" |
| Shank Style | Cylindrical shank |
| Brand | Dormer |
