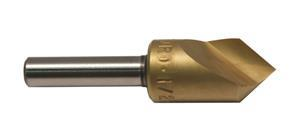

5/8 High Speed Steel Uniflute® Countersink - 60°, TiN Coated
- Item Code: 61T062501
- Brand: MA Ford
- Unit Size: 1
Description
Uniflute® - Series 61
This is the original single flute countersink designed for general purpose countersinking, chamfering or deburring.
High speed steel (HSS) provides good wear resistance and can be used in general purpose applications on both ferrous and nonferrous materials.
Features
Back To Top- Self piloting and completely chatterless.
- No secondary burs formed.
- Each size may be used on a wide range of hole diameters.
- Use on machine tool or in handheld tool applications.
- Easily resharpened.
- Steam homogeneous surface treatment (blackening) to prolong tool life and prevent galling.
Tech Specs
Back To Top| Overall Length | 2-1/4 |
|---|---|
| Angle | 60 ° |
| Brand | MA Ford |
| Number of Flutes | 1 |
| Shank Diameter | 1/4 |
| Non-Cutting OD Maximum | 0.06 |
| Coating/Finish | TiN |
| Series | Uniflute® |
| Decimal Diameter | 0.6250" |
| Fractional Diameter | 5/8" |
| Material | High Speed Steel |
