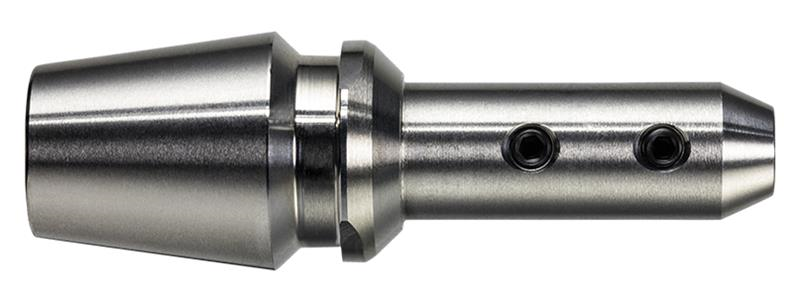

0.2500" (1/4) Bore Diameter x 12.500 mm Shaft Diameter x 14.000 mm Projection Length x ER20 Taper Solid ER Integrated Tool Holder

  • Item Code: 83005
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Reached taper integrated holder that eliminates the need for multiple spindle accessories
    • Designed for Turn Mill Centers and Machining Centers
    • Works with any ER holder or spindle
    • Multiple reaches
    • Maximum T.I.R. of <.0002"
    • Capable of quick change with included stop screw
    • Stop screw can be adjusted from both ends of holder

Tech Specs

Back To Top
Neck Diameter 12.500 mm
Minimum Bore Diameter 0.2500" (1/4)
Overall Reach 14.000 mm
Overall Length 1.7470"
Coolant Through N
Type ER20
Product Type ER
Weldon Flat N
Center Cutting N
Chip Breaker N
Coating/Finish None
Brand Harvey Tool
Single/Double End Single End
