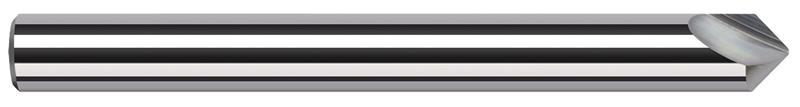

0.2500 in. (1/4) Shank Diameter x 0.0075 in. Radius x 90 Deg. Included 2 Flute Carbide Marking Cutter

  • Item Code: 830745
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for Milling Legible Part Numbers in Difficult-to-Machine Materials
    • Radiused Tip Design for Improved Strength
    • 2 Flute Cutting Design Has Improved Strength Over Single Point Engravers
    • Produces Radius in Bottom of Groove
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Coating None
Radius Decimal 0.0075"
Brand Harvey Tool
Shank Diameter Decimal 0.2500"
Material Solid Carbide
Decimal Cutting Diameter 0.2500"
Angle per Side 45
Included Angle 90
Length of Cut 0.1219"
Weldon Flat N
Overall Length 2.5000" (2-1/2)
Fractional Cutting Diameter 1/4"
Number of Flutes 2
Shank Diameter Fractional 1/4"
