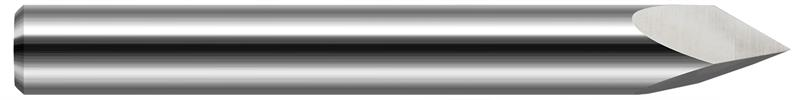

0.1250 in. (1/8) Shank Diameter x 90 Deg. Included Carbide Pyramid Point Engraver

  • Item Code: 842845
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • 3 facet design increases tip strength
    • Ground to a point
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Weldon Flat N
Material Solid Carbide
Brand Harvey Tool
Shank Diameter Decimal 0.1250"
Shank Diameter Fractional 1/8"
Angle per Side 45
Included Angle 90
Length of Cut 0.0630"
Overall Length 1.5000" (1-1/2)
Coating None
