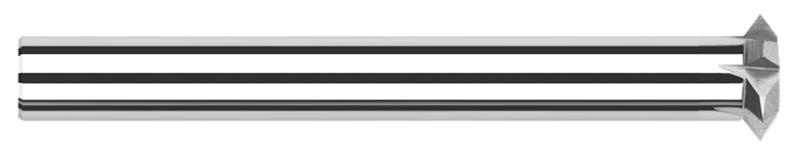

0.5000 in. (1/2) Cutter Diameter x 0.1440 in. Width 8 Flute Carbide Reduced Shank Pointed Double Angle Shank Cutter

  • Item Code: 866410
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ideal for back chamfering, chamfering, deburring, and milling a "V-groove"
    • Reduced straight shank allows any chucking depth
    • Tip of included angle ground to a point
    • 60 degree angle can also be used for thread milling
    • Solid carbide head brazed onto steel shank
    • CNC ground in the USA

Tech Specs

Back To Top
Cutter Width 0.1440"
Overall Length Decimal 3.1440"
Brand Harvey Tool
Shank Diameter 0.2500" (1/4)
Coating None
Fractional Cutting Diameter 1/2"
Included Angle 60
Decimal Cutting Diameter 0.5000"
Angle per Side 30
Material Solid Carbide
Number of Flutes 8
