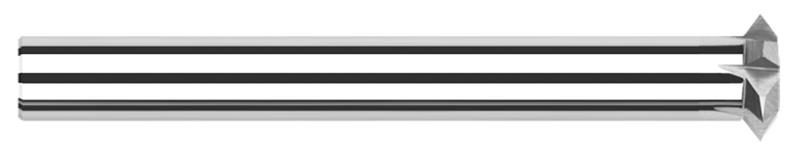

0.2500 in. (1/4) Cutter Diameter x 0.1250 in. (1/8) Width 6 Flute Carbide Reduced Shank Pointed Double Angle Shank Cutter

  • Item Code: 875503
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ideal for back chamfering, chamfering, deburring, and milling a "V-groove"
    • Reduced straight shank allows any chucking depth
    • Tip of included angle ground to a point
    • 60 degree angle can also be used for thread milling
    • Solid carbide head brazed onto steel shank
    • CNC ground in the USA

Tech Specs

Back To Top
Overall Length Decimal 2.6250"
Cutter Width 0.1250" (1/8)
Included Angle 90
Fractional Cutting Diameter 1/4"
Overall Length Fractional 2-5/8"
Shank Diameter 0.1250" (1/8)
Decimal Cutting Diameter 0.2500"
Weldon Flat N
Brand Harvey Tool
Coating None
Number of Flutes 6
Angle per Side 45
Material Solid Carbide
