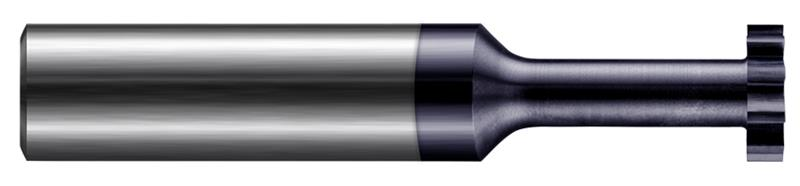

0.1875 in. (3/16) Cutter Diameter x 0.1250 in. (1/8) Width x 0.2810 in. (9/32) Neck Length 8 Flute AlTiN Nano Coated Carbide Standard Keyseat Cutter
- Item Code: 875995-C6
- Brand: Harvey Tool
- Unit Size: 1
Description
For Hardened Steels
Features
Back To Top- Optimized for hardened steels 45-68Rc with high flute count and specialized internal geometry
- Latest generation AlTiN Nano coating offer superior hardness and heat resistance
- 90 Deg. included angle, cutting on angle only
- Both sides of cutter are dished for clearance
- Solid carbide
- CNC ground in the USA
Tech Specs
Back To Top| Reach Multiple | (1.5x) |
|---|---|
| Shank Diameter | 0.1875" (3/16) |
| Type | I |
| Overall Length | 2.0000" (2) |
| Fractional Diameter | 3/16" |
| Number of Flutes | 8 |
| Radial Depth of Cut | 0.0370" |
| Brand | Harvey Tool |
| Cutter Width | 0.1250" (1/8) |
| Material | Solid Carbide |
| Neck Length | 0.2810" (9/32) |
| Coating/Finish | AlTiN Nano |
| Decimal Diameter | 0.1875" |
| Neck Diameter | 0.0930" (3/32) |
