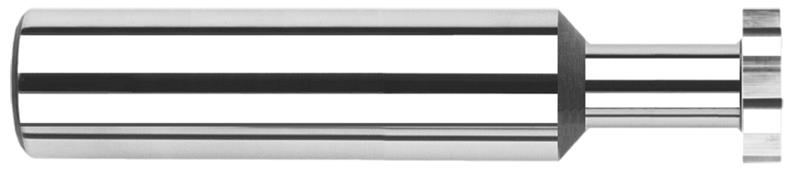

0.1250 in. (1/8) Cutter Diameter x 0.0250 in. Width x 0.1250 in. (1/8) Neck Length 6 Flute Carbide Square Deep Keyseat Cutter

  • Item Code: 893325
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Keyseat Cutters Down to 1/16" Diameter
    • Both sides of cutter are dished for clearance
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Decimal Diameter 0.1250"
Material Solid Carbide
Radial Depth of Cut 0.0320"
Brand Harvey Tool
Cutter Width 0.0250"
Shank Diameter 0.1250" (1/8)
Fractional Diameter 1/8"
Neck Length 0.1250" (1/8)
Number of Flutes 6
Overall Length 1.5000" (1-1/2)
Type II
Coating/Finish None
Neck Diameter 0.0400"
Reach Multiple (1x)
