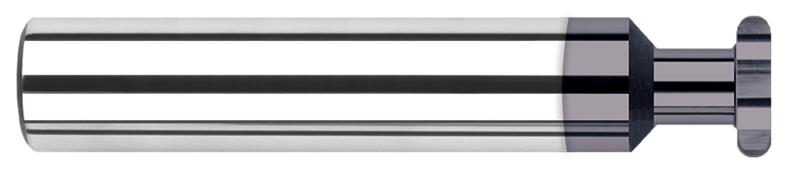

0.2500 in. (1/4) Cutter Diameter x 0.0156 in. (1/64) Radius x 0.1250 in. (1/8) Neck Length 6 Flute AlTiN Coated Carbide Full Radius Deep Keyseat Cutter

  • Item Code: 953915-C3
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ground form relieved (can be re-ground without losing radius)
    • 6 flutes
    • Both sides of cutter are dished for clearance
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Cutter Width 0.0312" (1/32)
Neck Diameter 0.0780" (5/64)
Radius Decimal 0.0156"
Fractional Diameter 1/4"
Coating/Finish AlTiN
Material Solid Carbide
Shank Diameter 0.2500" (1/4)
Number of Flutes 6
Overall Length 2.5000" (2-1/2)
Brand Harvey Tool
Neck Length 0.1250" (1/8)
Radial Depth of Cut 0.0760"
Type II
Decimal Diameter 0.2500"
Radius Fractional 1/64"
Reach Multiple (0.5x)
