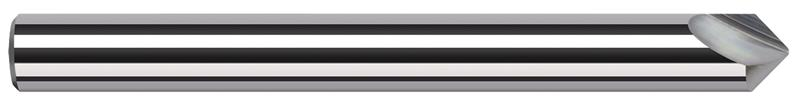

0.1250 in. (1/8) Shank Diameter x 0.0100 in. Radius x 40 Deg. Included 2 Flute Carbide Marking Cutter

  • Item Code: 961940
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Designed for Milling Legible Part Numbers in Difficult-to-Machine Materials
    • Radiused Tip Design for Improved Strength
    • 2 Flute Cutting Design Has Improved Strength Over Single Point Engravers
    • Produces Radius in Bottom of Groove
    • Solid Carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Brand Harvey Tool
Included Angle 40
Length of Cut 0.1525"
Material Solid Carbide
Decimal Cutting Diameter 0.1250"
Overall Length 1.5000" (1-1/2)
Radius Decimal 0.0100"
Coating None
Fractional Cutting Diameter 1/8"
Shank Diameter Decimal 0.1250"
Angle per Side 20
Number of Flutes 2
Shank Diameter Fractional 1/8"
