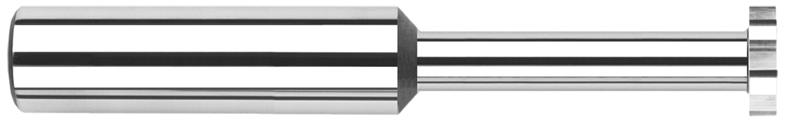

0.6250 in. (5/8) Cutter Diameter x 0.1250 in. (1/8) Width x 2.0000 in. (2) Neck Length 8 Flute Carbide Square Keyseat Cutter

  • Item Code: 972960
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Keyseat Cutters Down to 1/16" Diameter
    • Both sides of cutter are dished for clearance
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Decimal Diameter 0.6250"
Material Solid Carbide
Overall Length 4.0000" (4)
Brand Harvey Tool
Shank Diameter 0.6250" (5/8)
Cutter Width 0.1250" (1/8)
Neck Diameter 0.3120" (5/16)
Number of Flutes 8
Radial Depth of Cut 0.1460"
Coating/Finish None
Reach Multiple (3x)
Type I
Fractional Diameter 5/8"
Neck Length 2.0000" (2)
