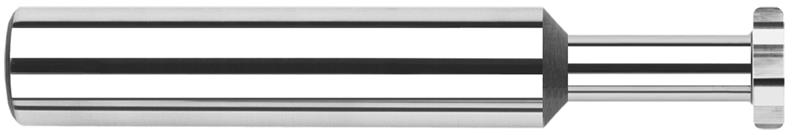

0.5000 in. (1/2) Cutter Diameter x 0.0150 in. (1/64) Radius x 0.0620 in. (1/16) Width x 0.7500 in. (3/4) Neck Length 8 Flute Carbide Corner Radius Keyseat Cutter

  • Item Code: 990330
  • Brand: Harvey Tool
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Both sides of cutter are dished for clearance
    • Corner radius for improved strength
    • Solid carbide
    • CNC ground in the USA

Tech Specs

Back To Top
Radial Depth of Cut 0.1150"
Radius Decimal 0.0150"
Neck Diameter 0.2500" (1/4)
Reach Multiple (1.5x)
Coating/Finish None
Shank Diameter 0.5000" (1/2)
Type I
Brand Harvey Tool
Overall Length 3.0000" (3)
Radius Fractional 1/64"
Cutter Width 0.0620" (1/16)
Neck Length 0.7500" (3/4)
Fractional Diameter 1/2"
Number of Flutes 8
Top Corner Radius 0.015
Decimal Diameter 0.5000"
Material Solid Carbide
