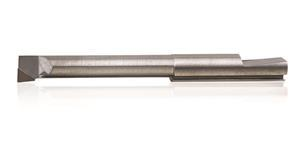

ABD156875R Grade CG5 A/B Boring Insert

  • Item Code: ABD156875R-CG5
  • Brand: WIDIA
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Tool Length (Fraction) 0.9750
Tool Length (Inch) 0.9750
Tool Length (Metric) 24.765
Tool Overall Length (Inch) 1.5250
Tool Overall Length (mm) 38.735
Max Bore Depth Decimal 0.8750"
Max Bore Depth Metric 22.225 mm
Brand WIDIA
Min Bore Diameter Metric 3.962 mm
Lead Angle ANSI -2.000
Min Bore Diameter Decimal 0.1560"
Units of Tool (Extract) IN - Inch
Lead Angle ISO 92.000
