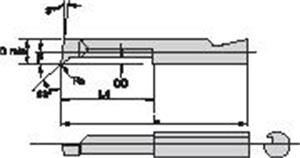

APD09281R Grade CM1 A/B Profiling Insert
- Item Code: APD09281R CM1
- Brand: WIDIA
- Unit Size: 1
| Corner Radius (Metric) |
0.178 |
| Cutting Depth (Inch) |
0.0280 |
| Cutting Depth (Metric) |
0.711 |
| Tool Length (Fraction) |
0.3810 |
| Tool Length (Inch) |
0.3810 |
| Tool Length (Metric) |
9.677 |
| Tool Overall Length (Inch) |
0.9310 |
| Tool Overall Length (mm) |
23.647 |
| Max Bore Depth Decimal |
0.2810" |
| Max Bore Depth Metric |
7.137 mm |
| Lead Angle ANSI |
-3.000 |
| Body Material Group |
C |
| Brand |
WIDIA |
| Min Bore Diameter Decimal |
0.1560" |
| Min Bore Diameter Metric |
3.962 mm |
| Toolholder Shape |
S - Straight |
| Corner Radius (Fractional) |
0.0070 |
| Corner Radius (Inch) |
0.0070 |
| Units of Tool (Extract) |
IN - Inch |
| Lead Angle ISO |
93.000 |
