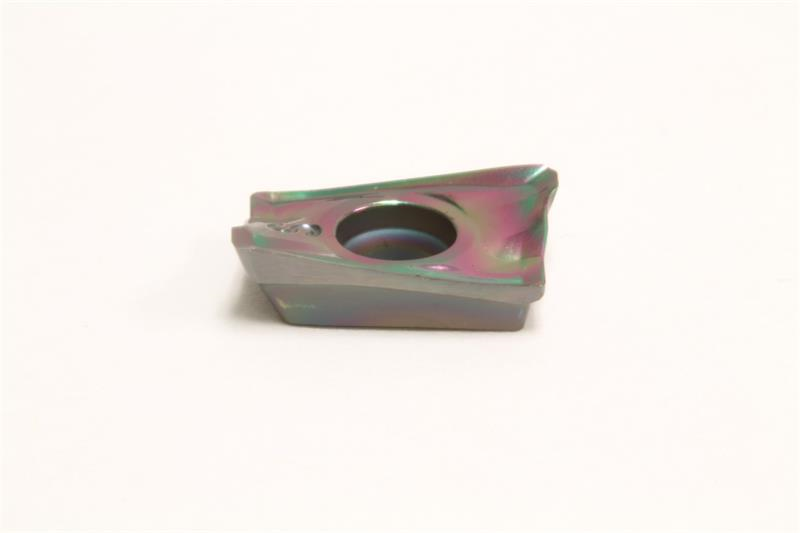

AXET123508 DL1000 Grade Carbide Milling Insert

  • Item Code: AXET123508PEFRS-DL1000
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Corner Radius 0.0160 Inch
Relief Angle 11 Degree
Product Name Milling Insert
Chipbreaker Type PEFRS
Included Angle 85
Insert Style AXET
Material Solid Carbide
Thickness 0.1380 Inch
Length 0.4720 Inch
Face Width 0.0610 Inch
Insert Series WEX2000
Insert Size 123508
Applicable Materials Aluminium Alloy
Grade DL1000
Cutting Width 0.2600 Inch
Brand Sumitomo
