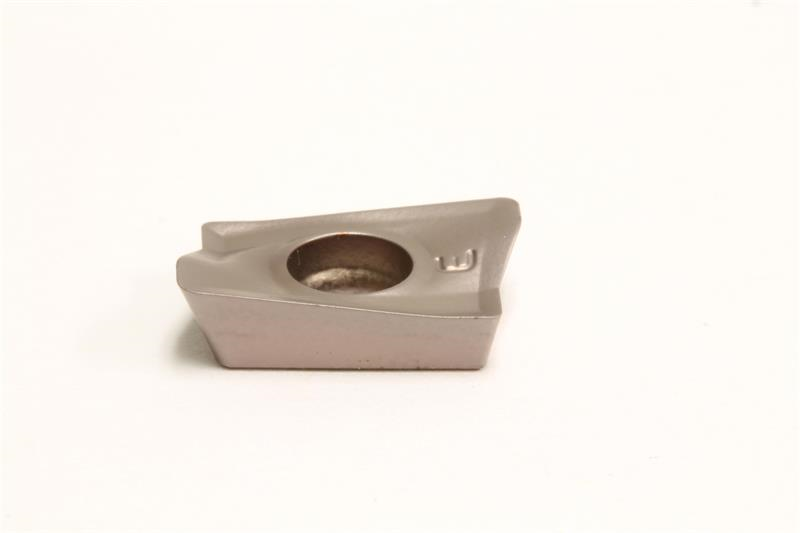

AXMT170530 ACP200 Grade Carbide Milling Insert

  • Item Code: AXMT170530PEERG ACP200
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Corner Radius 0.1180 Inch
Brand Sumitomo
Cutting Width 0.4020 Inch
Grade ACP200
Relief Angle 11 Degree
Face Width 0.1180 Inch
Included Angle 85
Length 0.6890 Inch
Thickness 0.2190 Inch
Insert Series WEX3000
Insert Size 170530
Product Name Milling Insert
Insert Style AXMT
Chipbreaker Type PEERG
Material Solid Carbide
Max Depth of Cut 0.5510 Inch
Applicable Materials Steel
