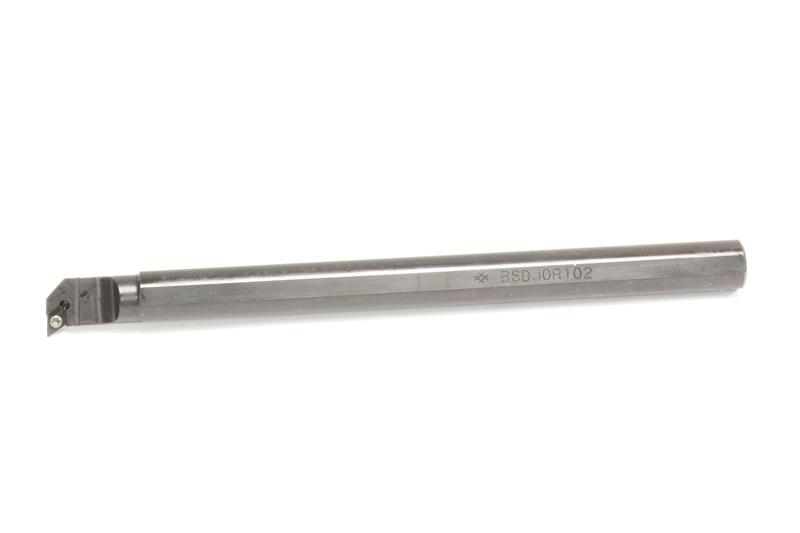

0.813 Inch Minimum Bore Diameter, 0.625 Inch Shank Diameter, Steel, BSDJO Style, 8 Inch OAL, Right Hand Holder Indexable Boring Bar

  • Item Code: BSDJOR102
  • Brand: Sumitomo
  • Unit Size: 1

Description

Tech Specs

Tech Specs

Back To Top
Cutting EdgeTo Center Distance 0.431 Inch
Nose Angle 55 Deg
Overall Length 8.000 Inch
Shape 55 Deg Diamond
Min Bore Diameter Decimal 0.8130"
Hand of Holder Right
Material Steel
Product Name Boring Bar
Shank Diameter 0.625 Inch
Type Screw Clamp
Brand Sumitomo
Rake Angle -6 Deg
Series BSDJO
