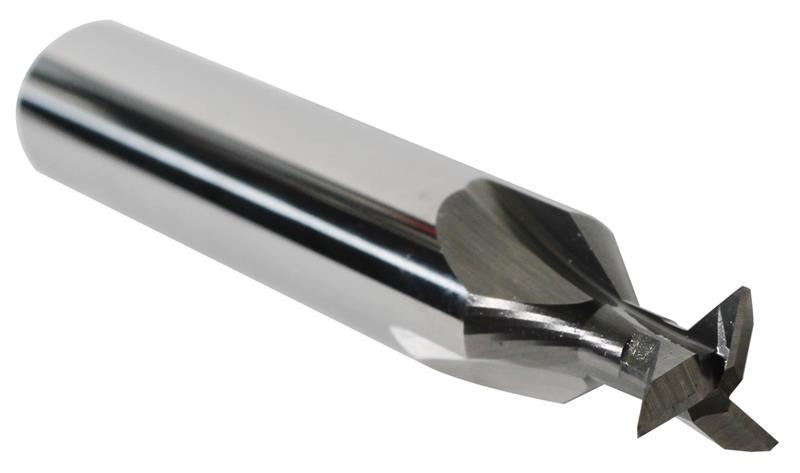

3/8 in. x 45 deg. Solid Carbide Dovetail Milling Cutter - Uncoated/Straight Tooth

  • Item Code: C903745
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Dovetail Milling Cutters Carbide

Straight Tooth Configuration

Made in USA

Features Tech Specs

Features

Back To Top
    • Micrograin Carbide
    • Right Hand Cut
    • Single Angle
    • Weldon Shank

Tech Specs

Back To Top
Brand Whitney Tool
UPC 648672302888
Metric Cutting Diameter 9.52 mm
Included Angle 45
Number of Teeth 3
Shank Type Weldon
Width Tolerance 0.015"
Material C2 Micrograin Carbide
Cut Width 1/8"
Overall Length (Inch) 2-1/8"
Shank Diameter Tolerance +0", -0.0005"
Style 45 Degree
Angle Tolerance 1/4 deg.
Shank Diameter 3/8"
Tooth Configuration Straight
Coating/Finish None
Fractional Cutting Diameter 3/8"
OD Tolerance 0.010"
